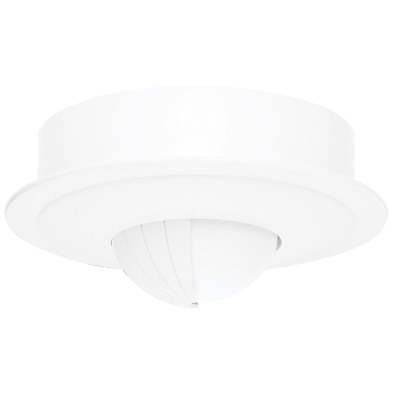

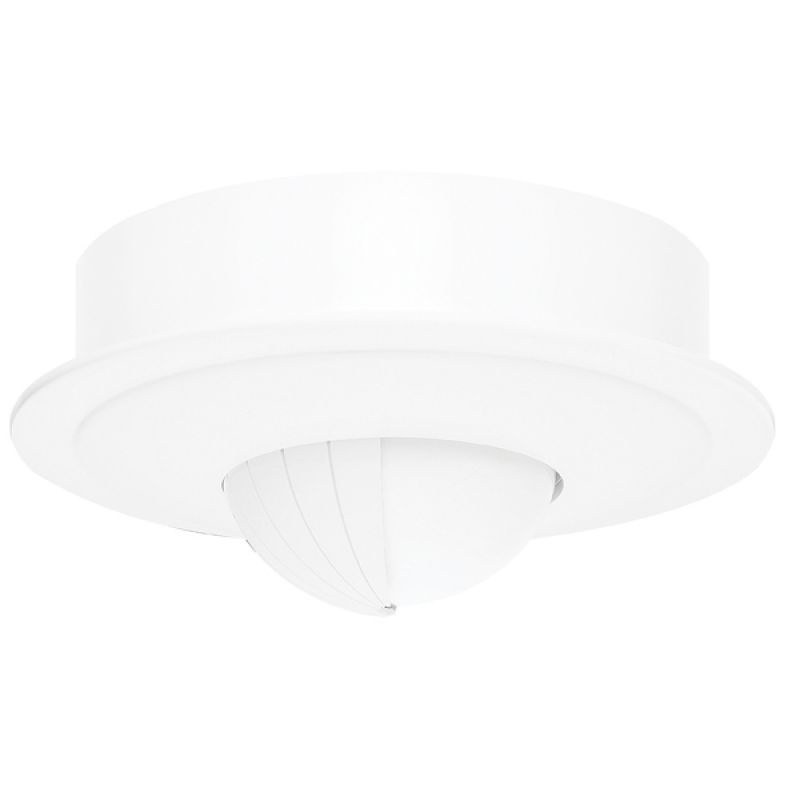

NADE - 10465- 360° CEILING TYPE MOTION SENSOR UNDERPLASTER

Brand: NADE
Product Name: NADE - 10465- 360° CEILING TYPE MOTION SENSOR UNDERPLASTER
Product Code: 10465
General Features

ROHS compliant

CE certified

Working voltage: 230-240V~50-60 Hz

Operating temperature: -20°C+40°C

Warranty: 3 years

Protection Class: IP20

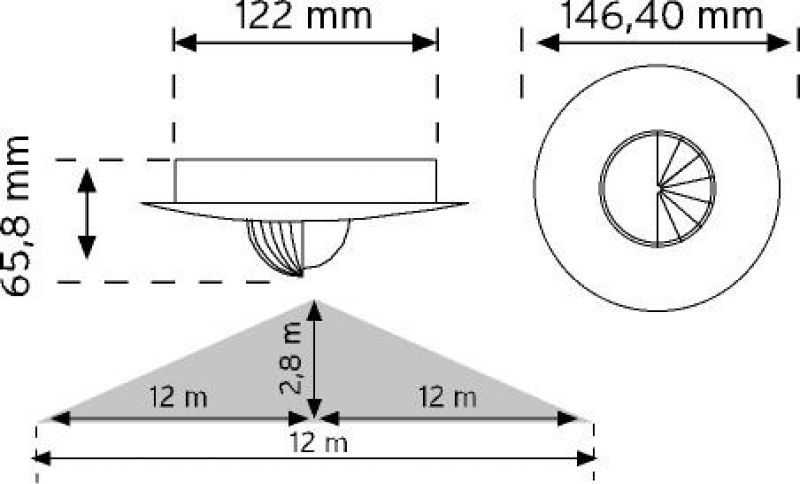

Detection area: 6m – 24m

Detection height: 2.8m

Time setting: 10sec~5min

Lighting load: 2000W – 800W



• Easy mounting under plaster

* Detection from all directions thanks to 3-eye sensor technology

• Ability to adjust 180° - 360° thanks to the angle adjustment apparatus

* Adjustable time, lux, distance feature

* Error-free detection thanks to digital control

• 24 m detection distance

* Mounting cutting diameter: Ø130 mm
