NADE - 10500- PRESENCE SENSOR

Brand: NADE
Product Name: NADE - 10500- PRESENCE SENSOR
Product Code: 10500
General Features
ROHS compliant

CE certified

Working voltage: 230-240V~50-60 Hz

Operating temperature: -20°C+40°C

Warranty: 3 years

Protection Class: IP20/II Class

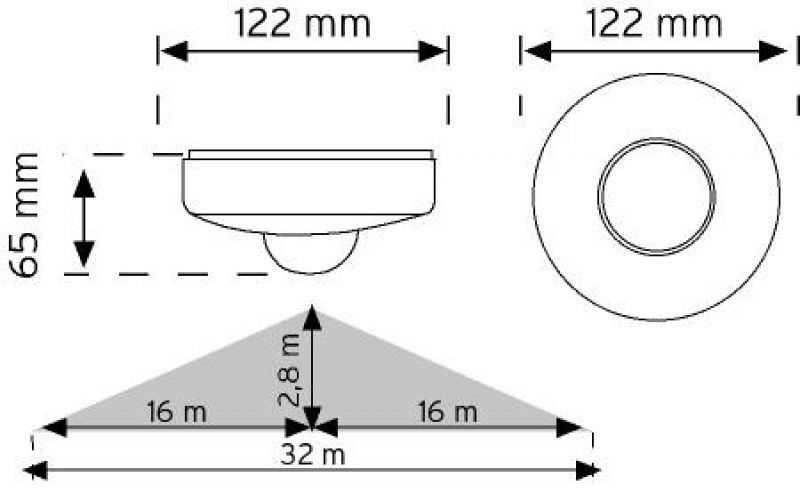

Detection area of effect: 180°6-32m

Detection height: 2.8m

Time setting: 3min~30min

Package information: 21kg, 8 pcs

Lighting load: 2000W – 800W



* Lights the lamp as long as the person is in the environment
* detection from all directions thanks to 3-eye sensor technology
• Ability to adjust 180°/360° thanks to the angle adjustment apparatus
• Easy installation on plaster

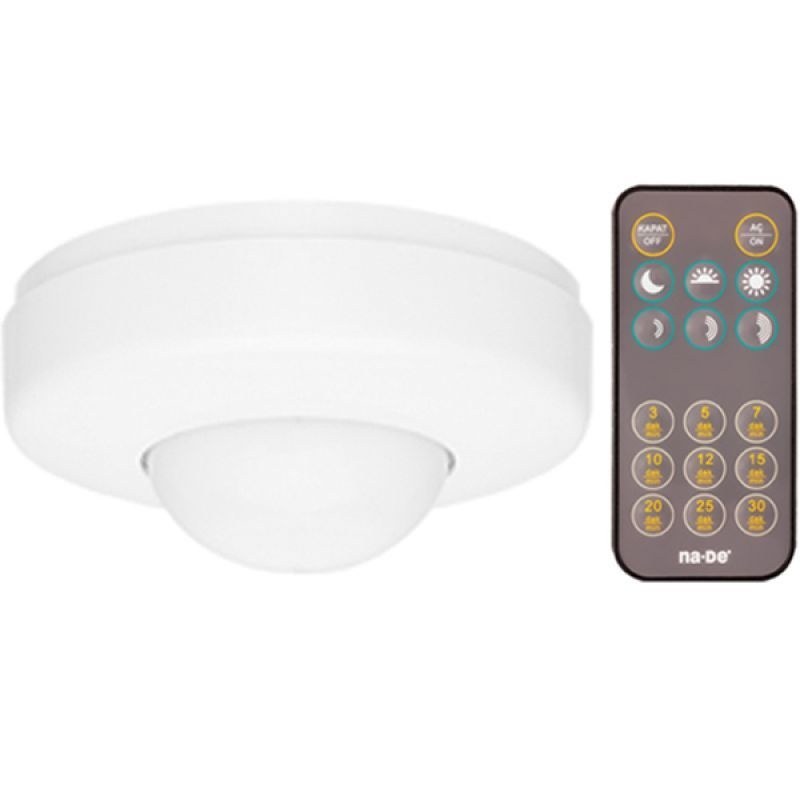

* Adjustable time, lux, distance feature with remote control
• 32m Detection distance
* Error-free detection that is not affected by ambient temperature changes, sensitivity and interference thanks to improved digital signal processing software and a powerful microprocessor
* Stable operation for 4 seasons with temperature compensation
* Illuminated warning indicating detection


For more information, please check the "Document" section.
