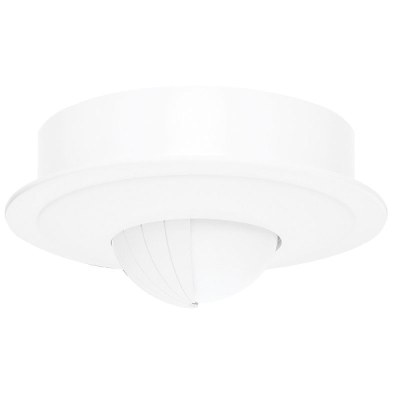

NADE - 10468- E-MOTION 360° CEILING TYPE MOTION SENSOR - UNDER-PLASTER (CORRIDOR SENSOR)

Brand: NADE
Product Name: NADE - 10468- E-MOTION 360° CEILING TYPE MOTION SENSOR - UNDER-PLASTER (CORRIDOR SENSOR)

Product Code: 10468
general features

ROHS compliant

CE certified

Working voltage: 230-240V~50-60 Hz

Operating temperature: -20°C+40°C

Warranty: 3 years

Degree of protection: IP20

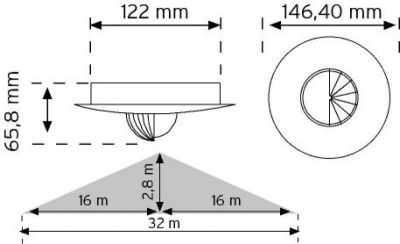

Detection area: 6m – 32m

Detection height: 2.8m

Time setting: 10sec~5min

Lighting load: 2000W – 800W



• Easy installation under plaster

* Adjustable time, lux, distance feature
* Error-free detection thanks to digital control

• 32m detection distance

* Mounting cutting diameter Ø130mm
