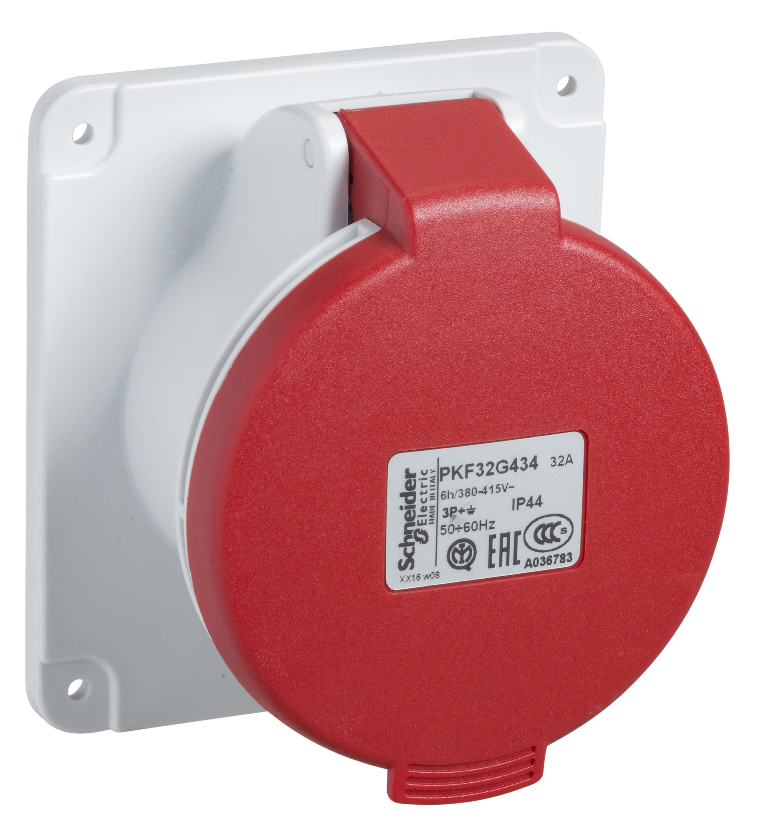

Schneider 4x32A Triphasic 3p-N-T Ip44 Screwed Straight Machine Socket

Basic

Output Standard

Industrial

Plug-Socket Category

Low Voltage

Pole Description

3P + E

Series

Pratika

Network Type

Ac

Product Name

Pratika Socket

Product Group

Pratika Socket

Product Series

Socket

Characteristic

Relative Humidity

50-50 % -De 40-40 °C

70-70 % -De 30-30 °C

90-90 % -De 20-20 °C

Ambient Air Condition for Operating

35-35 °C 86400 S )

Ik Protection Degree

Ik08 'E Conforming to EN 62262

Ip Protection Degree

Ip44 'E Conforming to IEC 60529

Standards

Iec 60309-1

Iec 60309-2

Fire Resistivity

850 °C 'E Conforming to IEC 60695-2-1

General Features

Connections - Terminals

Holder Screws

Depth

127 Mm

Plug, Socket Material

Conservation: Self-extinguishing Engineering Polymer

Plug, Socket Form of Control Station

Flat

Width

90 Mm

Color of Voltage

Red

Cable Cut View

2.5-10 Mm²

Contact Materials

Sleeves: Brass

Montage Type

Panel Montaged

Rated Current (Ir)

32 A

Rated Operational Voltage

380…415 V

Marketing Segment

Small-Size Enterprise

House

Color

Gray (Ral 7035)

Network Frequency

50/60 Hz

Ground lug clockwise position

6 H

Compatibility Code

Pratika Socket

Base Dimensions

90 x 100 MM

Product Weight

0.233 kg

Height

100 Mm
