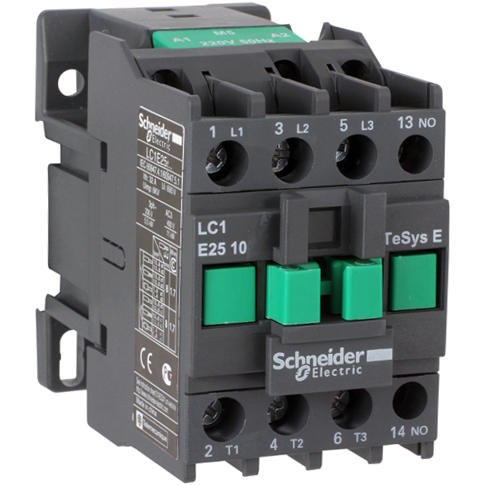

Schneider- 3 Poles Contactor Tvs 2.2w 220vac 1Nk

Temel

[Ie] Rated Operational Current

20 A 60 °C) -De <= 440 V Ac Ac-1 For Power Circuit

6 A 60 °C) -De <= 415 V Ac Ac-3 For Power Circuit

[Ue] Rated Operational Voltage

Power Circuit: <= 690 V Ac 50/60 Hz

Depth

80 Mm

Width

45 Mm

Contactor Application

Resister Load

Motor Control

Control Circuit Voltage

220 V Ac 50 Hz

Control Circuit Type

Ac -De 50 Hz

Usage Category

Ac-1

Ac-3

 Pole Contact Fixing

3 Na

[Ue] Rated Operational Voltage

3P

Motor Power Kw

1.1 Kw -De 220...230 V Ac 50/60 Hz (Ac-3)

2.2 Kw -De 380...400 V Ac 50/60 Hz (Ac-3)

2.2 Kw -De 415 V Ac 50/60 Hz (Ac-3)

2.2 Kw -De 440 V Ac 50/60 Hz (Ac-3)

3 Kw -De 500 V Ac 50/60 Hz (Ac-3)

3 Kw -De 660...690 V Ac 50/60 Hz (Ac-3)

Color

Gray (Ral 7011)

Series

Easypact

Product Name

Easypact Tvs

Product Weight

0.3 Kg

Product Series

Lc1E

Product or Unit Type

Contactor

Height

74 Mm

Features

Ambient Air Condition for Operating

-20-70 °C Uc'De

Operating altitude

3000 M Without

Environmental Characteristic for Storage

-60-80 °C

IP Protection Degree

Ip2X 'E Conforming to IEC  60529

Pollution Degree

3

Preventive Maintenance

Th (Pollution Degree 3) 'E Conforming to IEC  60068

Mechanical Robustness

Shocks Contactor Open: 11 Msn For 6 Gn

Shocks Contactor Close: 11 Msn For 7 Gn

Vibrations Contactor Open: 1,5 Gn, 5...300 Hz

Vibrations Contactor Close: 3 Gn, 5...300 Hz

Rated Operating Ambient Temperature

-5-55 °C

Standards

Iec 60947-1

Iec 60947-4-1

Iec 60947-5-1

Ambient Air Condition for Operating

Eac

Operating altitude

850 °C 'E Conforming to IEC  60695-2-1

General Characteristic

[Icw] Rated Short-Time Withstand Current

20 A -De <40 °C - 600 S For Power Circuit

45 A -De <40 °C - 60 S For Power Circuit

80 A -De <40 °C - 10 S For Power Circuit

[Ui] Rated Insulation Voltage

690 V 'E Conforming to IEC  60947-4-1

[Uimp] Rated Impulse Withstand Voltage

6 Kv The coil isn't connected to Power Circuit 'E Conforming to IEC  60947

Overvoltage Category

Iıı

Connections - Terminals

Power Circuit: Screw Clamp Terminals 1 1-4 Mm² - Cable Hardness: Flexible Cable with jag<

Power Circuit: Screw Clamp Terminals 1 1-4 Mm² - Cable Hardness: Solid Cable Jagless

Power Circuit: Screw Clamp Terminals 2 1-2.5 Mm² - Cable Hardness: Flexible Cable With end

Power Circuit: Screw Clamp Terminals 2 1-4Mm² - Cable Hardness: Solid Cable Jagless

Control Circuit: Screw Clamp Terminals 1 1-4 Mm² - Cable Hardness: Flexible Cable With Jag

Control Circuit: Screw Clamp Terminals 1 1-4 Mm² - Cable Hardness: Flexible Cable Jagless

Control Circuit: Screw Clamp Terminals 1 1-4 Mm² - Cable Hardness: Solid Cable Jagless

Control Circuit: Screw Clamp Terminals 2 1-2.5 Mm² - Cable Hardness: Flexible Cable With Jag

Control Circuit: Screw Clamp Terminals 2 1-4 Mm² - Cable Hardness: Flexible Cable Jagless

Control Circuit: Screw Clamp Terminals 2 1-4 Mm² - Cable Hardness: Solid Cable Jagless

Non-overlapping time

1.5 Ms Blackout Power Between Nk and Na Contact Warranted

1.5 Ms Blackout Power Between Nk and Na Contact Warranted

Operating Time

12...22 Msn Closing

4…19 Ms Opening

Electric Durability

1400000 Cycles Ac-1

150000 Cycles Ac-3

Irms Rated Closing Capacity

60 A -De 440 V Ac For Power Circuit 'E Conforming to IEC  60947-4-1

Heat Distrubition

2-3 W For Control Circuit

Fuse Value

10 A Gg -De <= 690 V Coordination Type 1 For Control Circuit 'E Conforming to IEC  60947-5-1

12 A Gg -De <= 690 V Coordination Type 1 For Power Circuit

Irms Rated Closing Capacity

Operating: 0,85...1,1 Uc -De 50 Hz 55 °C)

Reduce: 0,3...0,6 Uc -De 50 Hz 55 °C)

Power distribution per Pole

0.9 W Ac-3

1 W Ac-1

Maximum Operating Rate

1800 Cyc/H -De <60 °C

Mechanical Robustness

10000000 Cycles

Minimum Switching Current

5 Ma For Control Circuit

Minimum Switching Voltage

17 V For Control Circuit

Montage Support

Din Rail

Plate Block

Rated Breaking Capacity

48 A -De 440 V For Power Circuit 'E Conforming to IEC  60947

Average impedance

2.5 Mohm - Ith 60 A 50 Hz For Power Circuit

Tightening Torque

Power Circuit: 1.2 N.M

Control Circuit: 1.5 N.M

Inrush Power in Va

95-95 Va 60 Hz 0.75 20 °C)

95-95 Va 50 Hz 0.75 20 °C)

Hold Power Consumption in Va

8.5-8.5 Va 60 Hz 0.3 20 °C)

8.5-8.5 Va 50 Hz 0.3 20 °C)

Insulation Resistance

> 10 Mohm For Control Circuit

Auxiliary Contact Fixing

1 Nk
