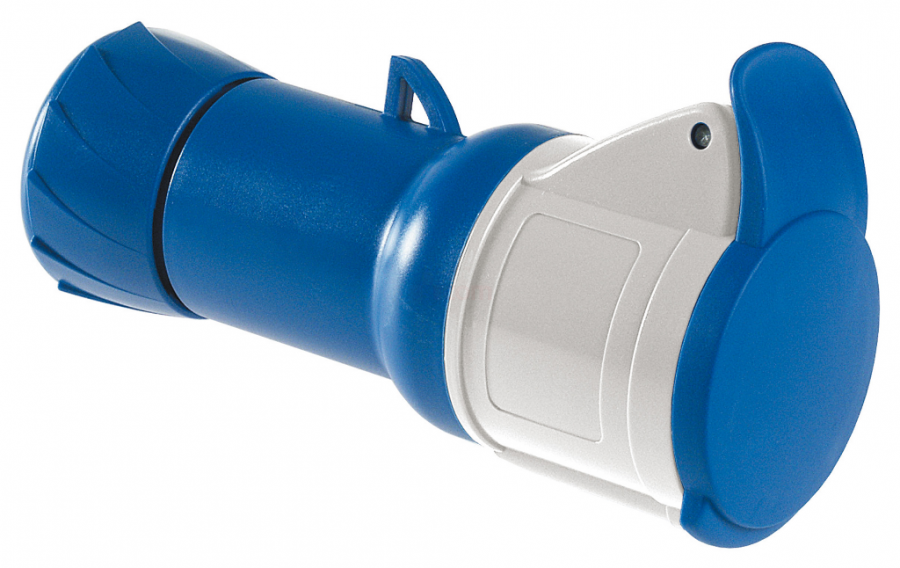

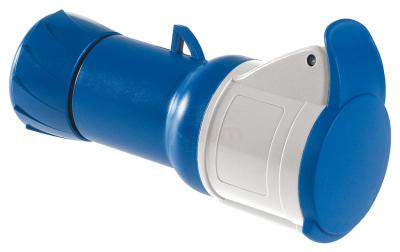

Schneider 3x32A Triphasic 2p-T Ip44 Screwed Wander Socket

Basic

Output Standard

Industrial

Plug-Socket Category

Low Voltage

Pole Description

2P + E

Series

Pratika

Network Type

Ac

Product Name

Pratika Socket

Product Group

Pratika Screw

Product Series

Wander Socket

Characteristic

Relative Humidity

50-50 % -De 40-40 °C

70-70 % -De 30-30 °C

90-90 % -De 20-20 °C

Ambient Air Condition for Operating

-25-40 °C

35-35 °C 86400 S )

Ik Protection Degree

Ik08 'E Conforming to EN 62262

Ip Protection Degree

Ip44 'E Conforming to IEC 60529

Standards

Iec 60309-1

Iec 60309-2

Fire Resistivity

850 °C 'E Conforming to IEC 60695-2-1

General Features

Connections - Terminals

Holder Screws

Depth

165 Mm

Thread Type

Pg 21

Plug, Socket Material

Conservation: Self-extinguishing Engineering Polymer

Plug, Socket Form of Control Station

Flat

Width

98 Mm

Color of Voltage

Blue

Cable outer Diameter

11.5-21 Mm

Cable Entrance

Cable Gland

Cable pulley

Cable Cut View

2.5-10 Mm²

Contact Materials

Sleeves: Brass

Montage Type

Montage on Wall

Rated Current (Ir)

32 A

Rated Operational Voltage

200…250 V

Marketing Segment

Small-Size Enterprise

House

Color

Gray (Ral 7035)

Network Frequency

50/60 Hz

Ground lug clockwise position

6 H

Compatibility Code

Pratika Screw

Product Weight

0.25 kg

Height

98 Mm
