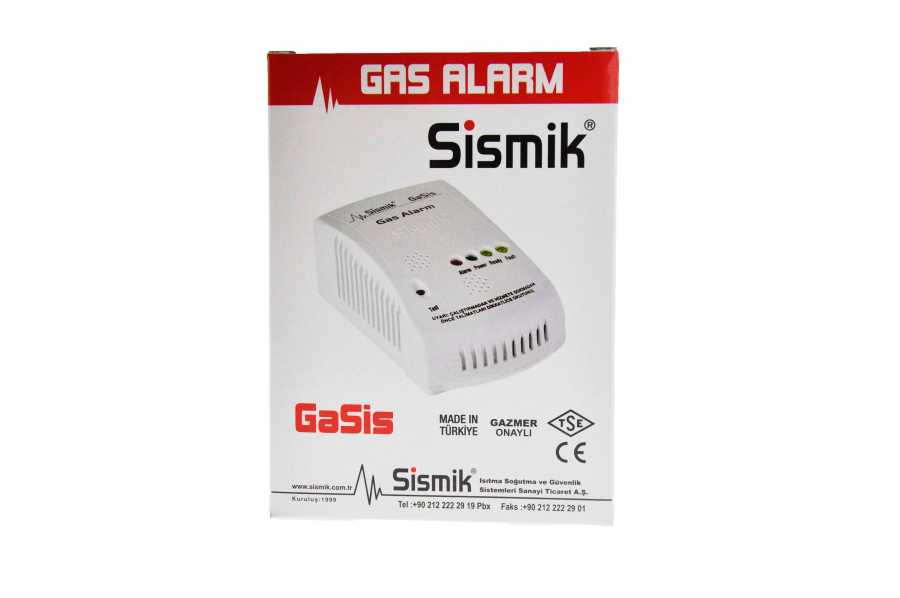

Methane. LPG and Natural Gas Alarm Detector -220V-

What does it do?

Seismic gas gas detection devices produced according to TSE EN 50194-1 Standard; Detect toxic and flammable gases in all kinds of residential, workplace and similar places and give audible and illuminated warnings. In case there is a gas leak above the 7%LEL (±0.4%LEL) limit in the environment, thanks to the contact outlet; It allows it to work by sending signals to systems such as horn, siren, gas shut-off valve (solenoid valve).

technical specifications

Working voltage : Input ; 230VAC 50Hz

Output Voltage: 230VAC 50Hz

Working Power(Stand by): 2.5W

Device Type: Type A

Calibration Time: 20 - 60 sec.

Buzzer Sound Output: 85 dB

Sensor Measurement Standard: TSE EN 50194-1

Sensor and Device Life: 5 Years

Alarm Level: Methane(Natural Gas) 7% LEL (±0.4% LEL) Gas-Methane Lower Explosion Limit.

Operating Temperature: -20°C to 50°C

Degree of Protection: IPX2D

Dimensions: 68mmX112mmX38mm

Weight: 300 g

Indicator and Alarm Features

Alarm : Illuminated indicator and audible (Red)

Power operating indicator: The illuminated indicator lights up as soon as it is connected to the 220V system. (Green)

Ready: When the system first starts working, it lights up from 30 seconds to 60 seconds, equivalent to the sensor heating up. Illuminated indicator (Yellow)

Fault: Lights up when any malfunction occurs on the sensor. Illuminated indicator. (Yellow)

If desired, after installation with the Test button, a test is performed to check the operability of the system.
