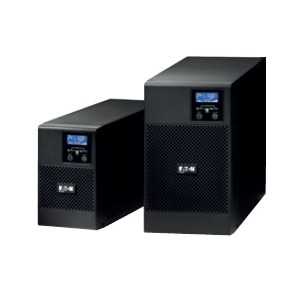

Eaton 9E 2KVA Online, LCD Screen, Tower Ups

9E3000I Technical Specifications

General

Classification (VA/W): 2kVA/1.6.4kW

Configuration: Tower

Electrical Properties: Technology

Online Double Conversion (Double Conversion)

Input Voltage: 208/220/230/240V

Input voltage range without using battery: 176-300V without derating (up to 100-300V with derating)

Output Voltage: 208V*/220V/230V/240V

Input frequency range: 40Hz-70Hz, 50/60 Hz automatic selection

Efficiency: Up to 91% in online mode

Overload capacity: 105%-130%: 60s, 130%-150%: 10s, >150%: ≥300ms

Connections

Introduction: (1) IEC-320-C14

Output: (6) IEC-320-C13

Supply Times at Half Load and Full Load:

9E3000I: 16/10 min

9E3000I+1: CPA 79/48 min

9E3000I+4: CPA 243/173  min

Communications

Communication Ports

1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used at the same time)

Card Slot: 1 slot for Network M2, ModBus-MS or Relay-MS cards

Software: Eaton IPM Software

Working Conditions, Standards and Approvals

Operating Temperature: 0 to 40°C

Noise level: <37 dB

Safety: IEC/EN 62040-1

EMC, Performance: IEC/EN 62040-2

Approvals: CE, CB report (TUV)/EAC

Physical:

UPS Dimensions L x H x W (mm) 399 x 330 x 190

UPS Weight(kg): 24.2

CPA Dimensions D x H x W (mm) 399 x 330 x 190

CPA Weight (kg) 35.8

Customer Service and Support

Warranty: 2 years
