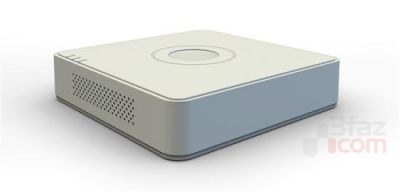

16 Channel 1080P Lite 1xSata HD-TVİ&AHD&CVİ DVR

Video/Audio Input



Audio Input: | / 1 Channel



Video Compression| / / H.264, P.264 +



Analog and HD-TVI Video Input: | | 16 Channels BNC (1.0Vp-p, 75 Ω)



Supported Camera Types: // Supports HDTVI Input: 1080p/25Hz, 1080p/30Hz, 720P/25Hz, 720P/30Hz,



Support AHD input: 720P/25Hz, 720P/30Hz,



CVBS Login Support



Audio Compression: / / G.711U



Audio Input Interface| |/ RCA (2.0Vp-p, 1 kΩ)



Two-way Audio: | | 1 Channel, RCA (2.0 Vp-p, 1 KΩ) (using audio input)



Video/Audio Output



HDMI/VGA Output: || 1920×1080/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz



Recording resolution: || 1080p When Lite mode is not enabled: 720p/WD1/4CIF/VGA/CIF;



when 1080p Lite mode is enabled: 1080p lite/720p/WD1/4CIF/VGA/CIF



Frame rate| // Mainstream:



1080p Lite mode is not enabled:



for 720p streaming access: 720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)



Lite mode enabled 1080p:



1080p lite/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)



Video Bitrate: || 32 Kbit/s~4 Mbit/s



Streaming Type| / / Video / Video and Audio



Audio output: || 1 Channel RCA (Linear, 1kΩ)



Audio Bitrate: || 64kbps



Double Flow: // Support



Playback Resolution: || 1080p lite/720p/WD1/4CIF/VGA/CIF



Synchronous Playback: | | 16 Channels



Network management



Remote connections: | | 128



Network protocols| //TCP/IP, PPPoE, DHCP, Hik Cloud P2P, DNS, DDNS, NTP, SADP, SMTP,NFS, iSCSI, UPnP ™ , HTTPS



Hard Disk Drive



Interface Type| |/ 2 SATA Interface



Capacity| | / Up to 6 TB capacity for each disk



External Interface



Network Interface: ||1; 10M/100M self-adaptive Ethernet interface



USB Interface| // 2 USB 2.0 Interface



General



Power supply| // 12V DC



Consumption: // ≤20W (without hard drives)



Operating temperature| |/ -10 ºC~+55 ºC (14 ºF~131 ºF)



Working Humidity: ||10%~90%



Dimensions: | | 285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inç)



Weight: // ≤ 1.2kg / 2.6lb (without hard drives)
